Model

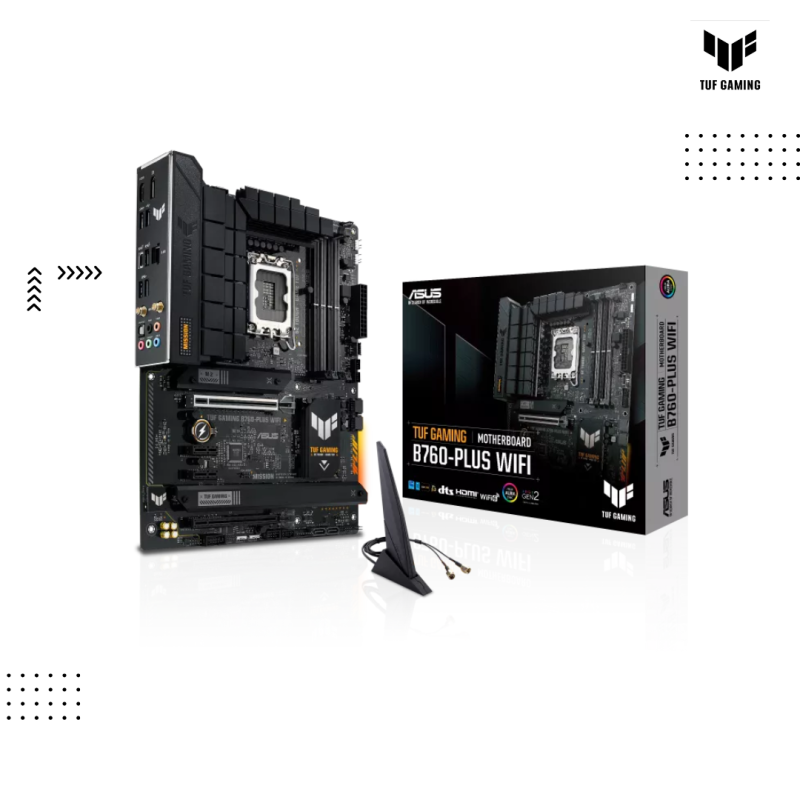

• TUF GAMING B760-PLUS WIFI

CPU

• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
• Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**
• * Refer to www.asus.com for CPU support list.
• ** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel^® B760 Chipset

Memory

• 4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Graphics
• 1 x DisplayPort**
• 1 x HDMI^TM port***
• * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• *** Supports 4K@60Hz as specified in HDMI^TM 2.1.

Expansion Slots

• Intel® Core™ Processors (14th & 13th & 12th Gen)
• 1 x PCIe 5.0 x16 slot
• Intel^® B760 Chipset
• 1 x PCIe 3.0 x16 slot (supports x4 mode)*
• 2 x PCIe 3.0 x1 slots*
• * PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2 . When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode.
• - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
• Intel^® Core™ Processors (14th & 13th & 12th Gen)
• 1 x PCIe 5.0 x16 slot
• Intel^® B760 Chipset
• 1 x PCIe 3.0 x16 slot (supports x4 mode)*
• 2 x PCIe 3.0 x1 slots*
• * PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2 . When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode.

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  Intel^® B760 Chipset
  M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports
  * Intel^® Rapid Storage Technology supports SATA RAID 0/1/5/10.
• Intel^® Core™ Processors (14th & 13th & 12th Gen)

Ethernet

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

Wireless & Bluetooth

• Wi-Fi 6
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth^® v5.2*
• *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."

USB

• Rear USB (Total 6 ports)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
• 1 x USB 3.2 Gen 2 port (1 x Type-A)
• 3 x USB 3.2 Gen 1 ports (3 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C^®)
• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Audio Shielding
• - Rear optical S/PDIF out port
• - Premium audio capacitors
• - Dedicated audio PCB layers
• - Audio cover

Back Panel I/O Ports

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
• 1 x USB 3.2 Gen 2 port (1 x Type-A)
• 3 x USB 3.2 Gen 1 ports (3 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
• 1 x DisplayPort
• 1 x HDMI^TM port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port

Internal I/O Connectors

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• Storage related
• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C^® )
• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thunderbolt™ (USB4^®) header

Special Features

• ASUS TUF PROTECTION
• - DIGI+ VRM (- Digital power design with DrMOS)
• - ESD Guards
• - TUF LANGuard
• - Overvoltage Protection
• - SafeSlot Core+
• - Stainless-Steel Back I/O
• ASUS Q-Design
• - M.2 Q-Latch
• - Q-DIMM
• - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• - Q-Slot
• ASUS Thermal Solution
• - M.2 heatsink
• - VRM heatsink design
• ASUS EZ DIY
• - CPU Socket lever protector
• - ProCool
• - Pre-mounted I/O shield
• - SafeSlot Core+
• - SafeDIMM
• Aura Sync
• - Aura RGB header
• - Addressable Gen 2 headers

Software Features

• ASUS Exclusive Software
• Armoury Crate
• - Aura Creator
• - Aura Sync
• - Fan Xpert 4
• - Power Saving
• - Two-Way AI Noise Cancellation
• AI Suite 3
• - DIGI+ VRM
• - PC Cleaner
• TUF GAMING CPU-Z
• DTS Audio Processing
• MyASUS
• Norton 360 for Gamers
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x ASUS Wi-Fi moving antenna
• 1 x TUF Gaming sticker
• 2 x M.2 Rubber Packages
• 1 x Screw package for M.2 SSD
• Documentation
• 1 x TUF Certification card
• 1 x User guide

Operating System

• Windows^® 11, Windows^® 10 64-bit
• _______________________________________
  3 Years Warranty
