Model

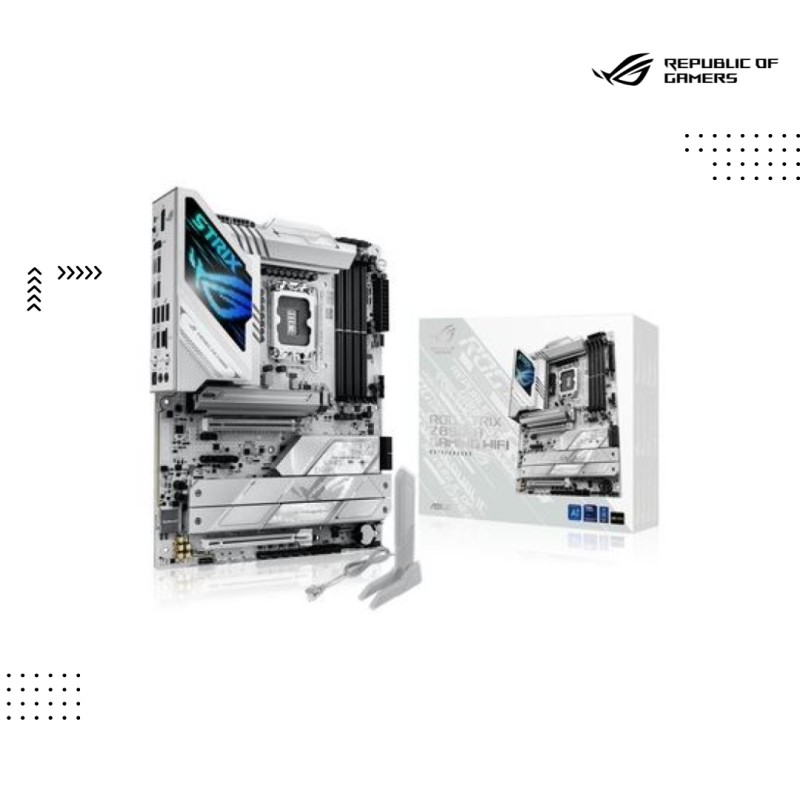

• ROG STRIX Z890-A GAMING WIFI

News & Updates

• Please refer to the global product page at the following linkfor the latest news and specifications.
• https://rog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/spec/

CPU

• Support Intel® Core™ Ultra Processors (Series 2)*
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• * Refer to https://www.asus.com/support/download-center/ for CPU support list.
• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® Z890 Chipset

Memory

• 4 x DIMM slots, max. 256GB, DDR5
• Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
• Dual channel memory architecture
• Supports Intel® Extreme Memory Profile (XMP) memory module
• Supports DIMM Flex
• Supports DIMM FIT
• ASUS Enhanced Memory Profile III (AEMPIII)
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

• 1 x DisplayPort*
• 1 x HDMI™ port**
• 2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs***
• - Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• * Supports max. 8K@60Hz as specified in DisplayPort 1.4.
• ** Supports 4K@60Hz as specified in HDMI 2.1.
• *** In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.
• **** VGA resolution support depends on processors' or graphic cards' resolution.
• ***** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots

• Intel® Core™ Ultra Processors (Series 2)
• 1 x PCIe 5.0 x16 slot

Intel® Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage
Total Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® Core™ Ultra Processors (Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel® Z890 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 7*
 2x2 Wi-Fi 7 (802.11be)
 Supports 2.4/5/6GHz frequency band**
 Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
 Bluetooth® v5.4***
 *Wi-Fi features may vary depending on the operating system
  For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
  For Windows 10, only Wi-Fi 6 is supported.
 ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
 *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 10 ports)
2 x Thunderbolt™ 4 ports (2 x USB Type-C®)*
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPS Fast-charge)**
2 x USB 5Gbps ports (2 x Type-A)

Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C® )*
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

* USB Type-C® power delivery output: max. 5V/3A
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
•  - Impedance sense for front and rear headphone outputs
•  - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
•  - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
•  - Supports up to 32-Bit/384 kHz playback on front panel

Audio Features

• - SupremeFX Shielding Technology
• - Savitech SV3H712 AMP
• - Rear optical S/PDIF out port
• - Premium audio capacitors
• - Audio cover
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Back Panel I/O Ports

• 2 x Thunderbolt™ 4 ports (2 x USB Type-C®)*
• 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPD Fast-charge)
• 2 x USB 5Gbps ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Intel® 2.5Gb Ethernet port
• 2 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button
• Internal I/O Connectors
• Fan and Cooling Related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 5 x 4-pin Chassis Fan headers
• Power Related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connectors
• Storage Related
• 5 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

USB

• 1 x USB 20Gbps connector (supports USB Type-C® )
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Chassis Intrusion header
• 1 x CPU Over voltage jumper
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x Start button
• 1 x 10-1 pin Front System Panel header
• 1 x Thermal Sensor header
• 1 x Thunderbolt™ (USB4®) header

Special Features

• Extreme Engine Digi+
• - 5K Black metallic capacitors
• ASUS Q-Design
• - M.2 Q-Latch
• - M.2 Q-Release
• - M.2 Q-Slide
• - PCIe Slot Q-Release Slim (with PCIe SafeSlot)
• - Q-Antenna
• - Q-Dashboard
• - Q-DIMM
• - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• - Q-Slot
• ASUS Thermal Solution
• - M.2 heatsink backplate
• - M.2 heatsink
• ASUS EZ DIY
• - BIOS FlashBack™ button
• - BIOS FlashBack™ LED
• - Clear CMOS button
• - CPU Socket lever protector
• - ProCool II
• - Pre-mounted I/O shield
• - SafeSlot
• - SafeDIMM
• Aura Sync
• - Addressable Gen 2 headers
• Software Features
• ROG Exclusive Software
• - ROG CPU-Z
• - Dolby Atmos

ASUS Exclusive Software

• Armoury Crate
• - Aura Creator
• - Aura Sync
• - Fan Xpert 4 (with AI Cooling II)
• - GameFirst
• - Power Saving
• AIDA64 Extreme (60 days free trial)
• HWiNFO
• ASUS AI Advisor
• ASUS DriverHub
• ASUS GlideX
• USB Wattage Watcher
• TurboV Core
• Adobe Creative Cloud (30 Days Free Trial)
• Norton 360 for Gamers (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• AI Overclocking Guide
• NPU Boost
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash
• - ASUS UEFI BIOS EZ Mode
• - ASUS MyHotkey
• FlexKey

BIOS

• 256 Mb UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables
• 2 x SATA 6Gb/s cables
• Additional Cooling Kit
• 1 x Thermal pad for M.2 22110
• Miscellaneous
• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 Q-Latch package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 5 x M.2 rubbers
• Documentation
• 1 x Quick start guide
• Operating System
• Windows 11 (22H2 later)
• _______________________________________
  3 Years Warranty
