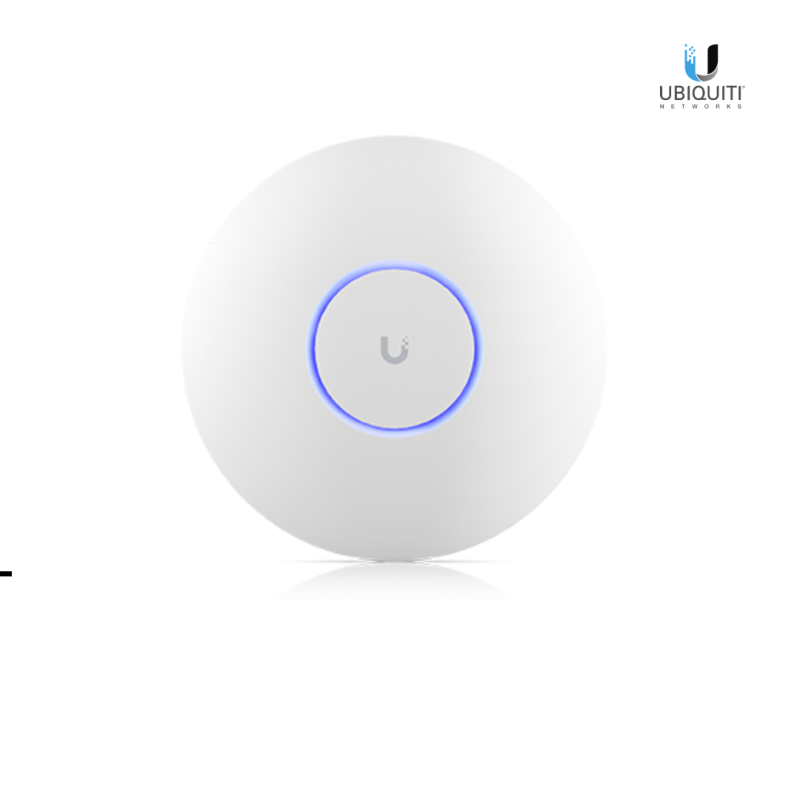

Ubiquiti | U7-Pro Access Point

0 reviews 0 sold. Only 1 remain

$229.00

Ex Tax: $229.00

Brand: UBIQUITI

Product Code: Ubiquiti | U7-Pro Access Point

Stock In Stock

Qty

Add to wishlist
Add to compare

Tags: Ubiquiti | U7-Pro Access Point

Categories Cart Account Search Recent View Go to Top

Product Description

Dimensions: Ø206 x 46 mm,(Ø8.1 x 1.8")
WiFi Standard: WiFi 7
Spatial Streams: 6
Coverage Area: 140 m² (1,500 ft²)
Max. Client Count: 300+
Uplink: 2.5 GbE
Mounting: Ceiling, Wall,(Pro Mount Included)
Power Method: PoE+
Performance
MIMO
6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
6 GHz: 5.8 Gbps (BW320)
5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
Antenna Gain
6 GHz: 5.8 dBi
5 GHz: 6 dBi
2.4 GHz: 4 dBi
Max. TX Power
6 GHz: 23 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7): 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Features
Wireless Meshing✓
Band Steering✓
802.11v BSS Transition Management✓
802.11r Fast Roaming✓
802.11k Radio Resource Management (RRM)✓
Advanced Radio Management✓
Passpoint (Hotspot 2.0)✓
Captive Hotspot Portal
Custom Branding Landing Page✓
Voucher Authentication✓
Payment-Based Authentication✓
External Portal Server Support✓
Password Authentication✓
Guest Network Isolation✓
Private Pre-Shared Key (PPSK)✓
WiFi Speed Limiting✓
Client Device Isolation✓
WiFi Schedules✓
RADIUS over TLS (RadSec)✓
Dynamic RADIUS-assigned VLAN✓
Hardware
Max. Power Consumption : 21W
Supported Voltage Range: 44—57V DC
Networking Interface: (1) 1/2.5 GbE RJ45 port
Weight : 680 g (1.5 lb)
Management: Ethernet
Enclosure Material: Polycarbonate, metal
Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
LEDs:
System: White/Blue
Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant: ✓
Certifications: CE, FCC, IC, Anatel: 06370-24-08356
Operating Frequency
US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
U-NII-5 to U-NII-8 : 5925 - 7125 MHz
Worldwide:
2400 - 2483.5 MHz
5150 - 5725 MHz
5925 - 7125 MHz
Ambient Operating Temperature
-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Warranty: 1 Year
