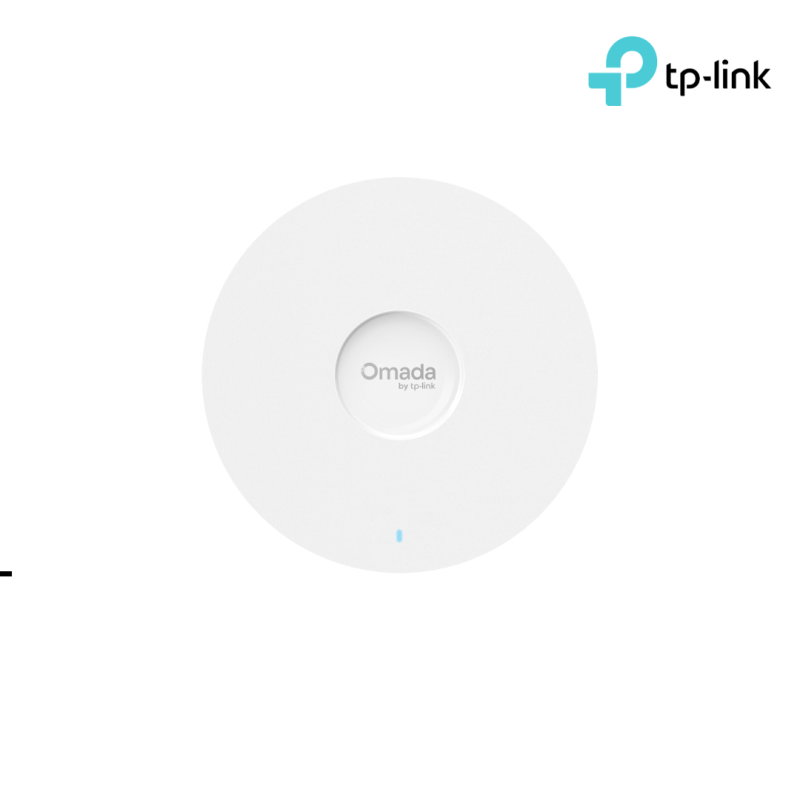

TP-LINK Access Point | AX6000 Ceiling Mount WiFi 6 ( EAP683 UR )
Product Description
| Interface | 1× 2.5 Gigabit PoE+ Port |
|---|---|
| Button | Reset |
| Power Supply | • 802.3at PoE • 12 V / 2 A DC (Power adapter Not Included) |
| Max. Power Consumption | • EU: 20.43W • US: 23.69W |
| Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna | Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5 dBi |
| Bluetooth | V5.2 |
| Mounting | Ceiling / Wall / Junction Box Mounting (Kits Included) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 2000ft² (185㎡)* |
| Concurrent Clients | 510+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 4804 Mbps • 2.4 GHz: Up to 1148 Mbps |
| Wireless Functions | • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO (4*4 MU-MIMO DL&UL) • MIMO [4*4 (2.4G and 5G) MU-MIMO; 4*4 (2.4G and 5G) SU-MIMO] • HE160 (160 MHz Bandwidth)‡ • Seamless Roaming(802.11k/v/r) △ • Omada Mesh△ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication△ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power |
• CE:
|
